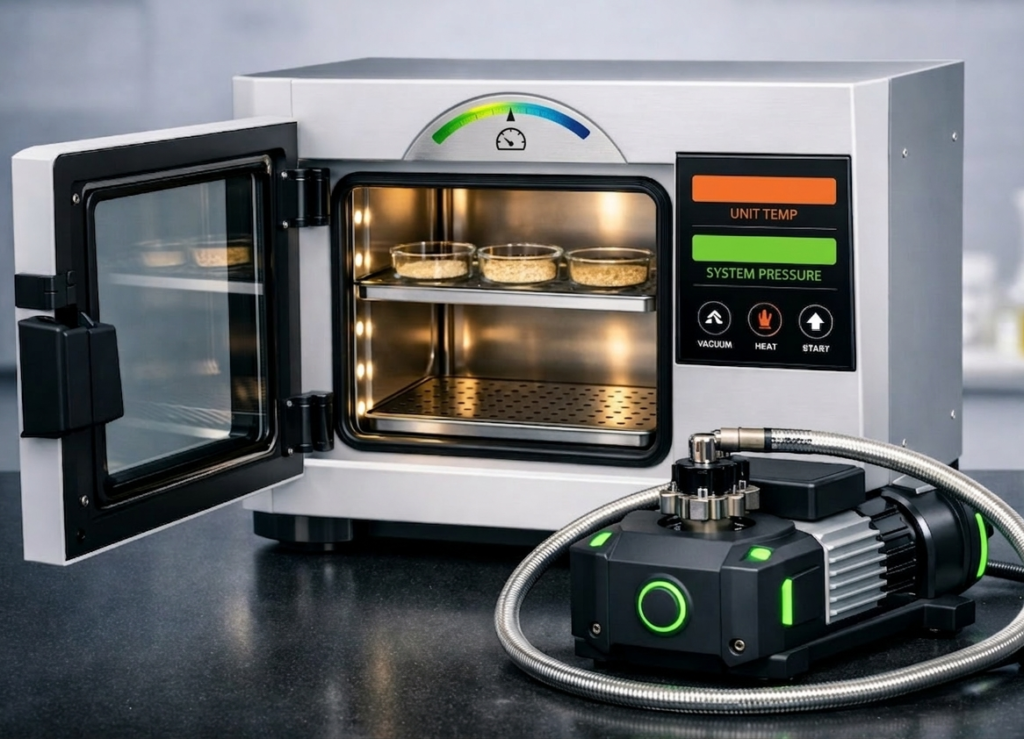

Vacuum Oven
Our Vacuum Ovens are specifically engineered for the drying of heat-sensitive, oxidative, or complex samples. By significantly lowering the atmospheric pressure, these units allow for rapid evaporation at lower temperatures, preserving the integrity of delicate materials and preventing sample degradation.
Core Performance Features
- Advanced Thermal Precision: Controlled by a Digital PID Microprocessor, these ovens maintain stable temperatures up to 200 0 C with a high-resolution Graphic LCD (GLCD) for real-time monitoring.
- Superior Vacuum Integrity: Features a heavy-duty, one-piece molded silicone door gasket and a reinforced chamber to ensure a leak-proof, high-vacuum environment.
- Enhanced Safety Viewing: Equipped with a thick, Tempered Safety Glass window protected by a polycarbonate shield, allowing for clear observation of samples during the vacuum process.
- Rapid Evaporation: Ideal for solvent recovery, drying powders without scattering, and anaerobic processing where oxygen must be completely removed.
Technical Summary
Feature | Specification Details |
Temperature Range | Ambient +10 0 C to 200 0 C |
Control Type | Digital PID with 99hr 59min Timer |
Vacuum Range | 0 to 760 mmHg (101 kPa) |
Internal Material | Corrosion-resistant Stainless Steel 304 |
Shelving | Highly conductive Aluminum plate shelves for rapid heat transfer |
Â
Safety & Construction
- Triple Safety System: Includes an independent over-temperature limiter, electrical leakage breaker, and a vacuum-release valve to prevent sudden pressure changes.
- Thermal Protection: Double-layered ceramic fiber insulation keeps the exterior surface cool while maintaining maximum internal heat retention.
- Integrated Ports: Standard models include dedicated vacuum and vent valves, with optional digital vacuum gauges and RS-485 communication ports for data logging.
