UV Lamp
Our UV product line offers a versatile range of handheld and stationary light sources designed for fluorescence detection, material inspection, and germicidal applications. Engineered with precision filters and high-intensity tubes, these units provide the reliable performance required for laboratory analysis and clinical safety.
Core Performance Features
- Multi-Wavelength Versatility: Available in single or dual wavelength models, including Short-wave (254 nm), Medium-wave (312 nm), and Long-wave (365 nm) to suit specific analytical needs.
- High-Intensity Output: Designed to provide maximum irradiance for clear fluorescence. For example, the 15W models deliver up to 2,300 µW/cm2at a 15cm distance.
- Precision Filtering: All analysis lamps are equipped with high-quality filters to eliminate visible light interference, ensuring high-contrast fluorescence detection.
- Ergonomic & Durable: Lightweight, high-impact plastic or coated metal housings ensure comfortable handheld use and long-term durability in industrial environments.
Â
Technical Summary
Lamp Power | Available Wavelengths (nm) | Intensity Range (μW/cm2) | Common Applications |
4W Handy | 254 / 312 / 365 | 340 – 400 | TLC, Mineralogy, Forensics |
6W Handy | 254 / 312 / 365 | 400 – 610 | DNA/RNA Detection, Gel Analysis |
15W High Power | 254 / 312 / 365 | 930 – 2300 | Industrial Inspection, Sterilization |
Sterilization | 254 (UVC) | High Germicidal Output | Air/Surface Decontamination |
Â
Safety & Accessories

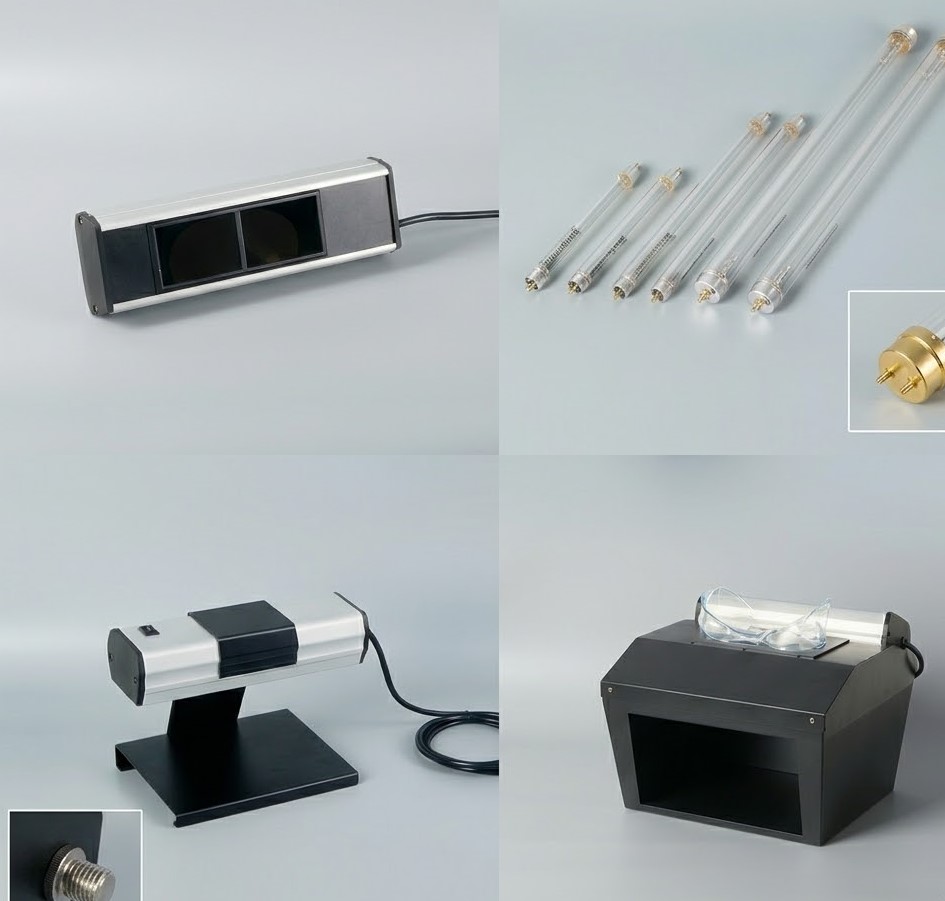

- Viewing Cabinets: Specialized darkroom cabinets (Model UVC-6) are available to provide a controlled environment for UV analysis without ambient light interference.
- Mounting Options: Can be used with optional stands or brackets for hands-free operation in stationary laboratory setups.
- Certified Quality: Most models are CE Certified, ensuring adherence to international safety and electrical standards.
- Germicidal Efficiency: Our UVC (254 nm) straight lamps are specifically designed to destroy the DNA of microorganisms, making them highly effective for air and surface disinfection.
