Test Chamber

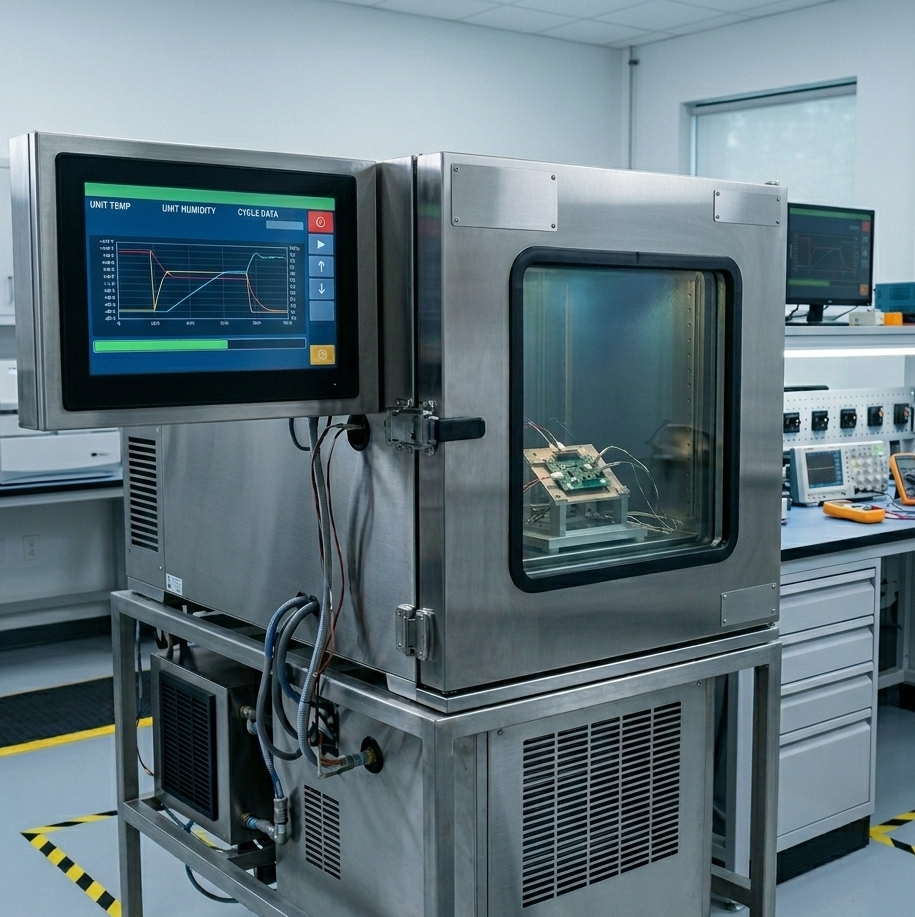

Our Test Chambers are engineered for high-precision environmental testing, including stability testing, material analysis, and electronic component verification. These units feature advanced programmed touch-screen control and rapid heating and cooling speeds to simulate a wide range of environmental conditions.

Core Range & Performance

Equipment Type

Temperature Range

Humidity Range

Capacity Options

Constant Temperature Chamber

-40 0C to +180 0C

N/A

150L, 250L, 490L

Temp & Humi Chamber

0 0C / -20 0C / -40 0C to +150 0C

20% to 95% RH

150L, 250L

Table Top Temp & Humi

-20 0C to +150 0C

20% to 95% RH

35L, 65L



Key Features

  • Advanced Programming: Integrated touch-screen controller supporting up to 120 patterns and 1,200 segments.
  • Precision Monitoring: High-resolution display for real-time temperature and humidity tracking.
  • Observation & Access: Units include a pair-glass viewing window with an internal LED lamp and a 50 mm cable port for external instrument connection.
  • Data Management: Built-in SD card slot for external memory and RS485 ports for PC communication.
  • Optimized Airflow: A fan-stop function activates when the door is opened to minimize temperature/humidity fluctuations and ensure operator safety.

Safety & Reliability

  • Double Overheat Protection: Features a primary controller alarm and a secondary circuit shut-off for maximum safety.
  • Operational Alarms: Includes door open alarms, low water level indicators (for humidity models), and temperature variation alerts.
  • Power Continuity: Equipped with a power failure compensation function to protect ongoing tests.
  • Emergency Controls: Standard emergency stop switch for immediate manual intervention.

Technical Specifications

  • Materials: Corrosion-resistant Stainless Steel 304 interior with a durable Powder Coated Steel exterior.
  • Accuracy: Temperature accuracy of ± 0.3 0C at 50 0C
  • Mobility: Integrated leveling casters for easy positioning and stability.
  • Options: Available with paper recorders, sign tower lamps (for status indication), and additional shelving.
