Particulate Matter Count - Filter Paper Analysis

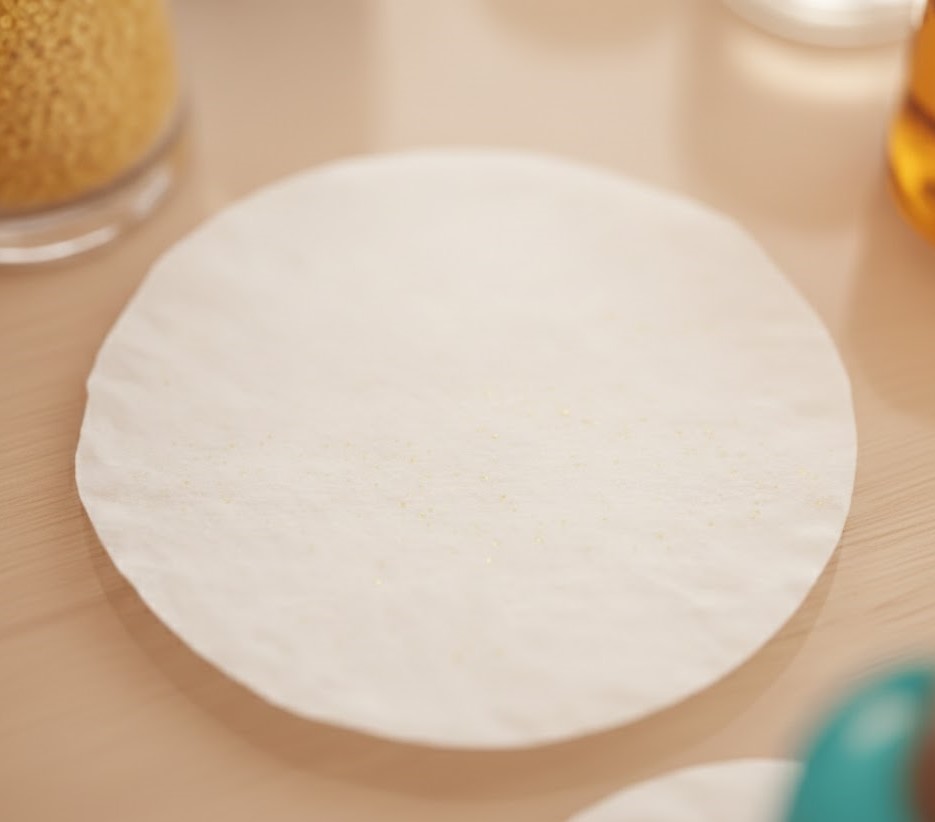

Particulate Matter (PM) analysis on filter papers is a critical safety test for injectables, infusions, and medical devices. Traditionally, this is done by a technician staring through a microscope for hours, which is both exhausting and prone to “counting fatigue.”
ImageProVision (specifically through ipvAutoM ) automates this by turning the filter paper into a digital map. Here is how the AI handles the heavy lifting:
- Full-Filter Scanning & Stitching
A standard microscope view only shows a tiny fraction of a 47mm or 25mm filter paper.
- Automated Stage Control: The software moves the microscope stage in a “snake” pattern to capture every square millimeter of the filter.
- Image Stitching: It seamlessly joins hundreds of individual photos into one high-resolution “macro” image of the entire filter. This ensures no particle is counted twice and none are missed at the edges of a frame.
- Particle Detection & Classification
The AI doesn’t just “see” a dot; it analyzes the morphology to categorize the debris.
- Size Binning: It automatically sorts particles into the standard regulatory bins.
- Fiber vs. Particle: The system uses “Aspect Ratio” and “Length” to distinguish between a round speck of dust and a long lint fiber. This is crucial because fibers often have different regulatory limits or source origins.
- Color & Transparency: It can detect transparent “proteinaceous” particles or colored plastic shards that might be invisible to basic thresholding software.
- Advanced Hardware Integration
To get the best data from a filter paper, ImageProVision uses specific lighting techniques:
- Polarized Light: Helps identify birefringent materials (like certain plastics or crystals).
- Top/Episcopic Illumination: Essential for opaque filter papers to ensure the particles “pop” against the background.
- Meeting Regulatory Standards (USP/EP/JP)
The software is pre-configured to generate reports that satisfy global pharmacopeia standards:
Standard | Focus Area | ImageProVision Role |
USP <788> | Particulate Matter in Injections | Automated counting/sizing for sub-visible particles. |
USP <790> | Visible Particulates | Validation of manual inspection via high-res imaging. |
21 CFR Part 11 | Electronic Records | Provides encrypted audit trails, e-signatures, and raw image storage. |
Summary of Key Benefits
- Eliminates Human Bias: Two different technicians often give two different counts; the AI provides a reproducible, objective number.
- Archivability: Instead of throwing the filter paper away or watching it degrade, you have a permanent digital twin of the test for future audits.
- Speed: What takes a human 30–45 minutes, the AI completes in under 5 minutes.
